The CSV / Text File Data Source

The simplest source there is: a text file with one row per line and a character between the values. It is also the most reliable - no library to install, no formatting to misread, and every spreadsheet on earth can produce one.

When to use it

Choose CSV/Text File when your data is already a delimited text file, or when it can easily become one. A spreadsheet saved as CSV loses its colours and its formulas, and that is usually a feature: the ruleset decides how the table looks, so the file only has to carry the values.

Use CSV when	Use something else when
The file is exported from a spreadsheet, an accounting system or a database tool.	You need the workbook's own colours and bold text - use Excel File.
A colleague updates one file and you want the site to follow.	The data lives in this site's database - use Database Table/Query.
The file sits on another server and is published as plain text.	The remote file is a web page with a table in it - use HTML file or Webpage.

The form

Components › Tabulizer › Data Sources › New Data Source, then set Source Type to CSV/Text File.

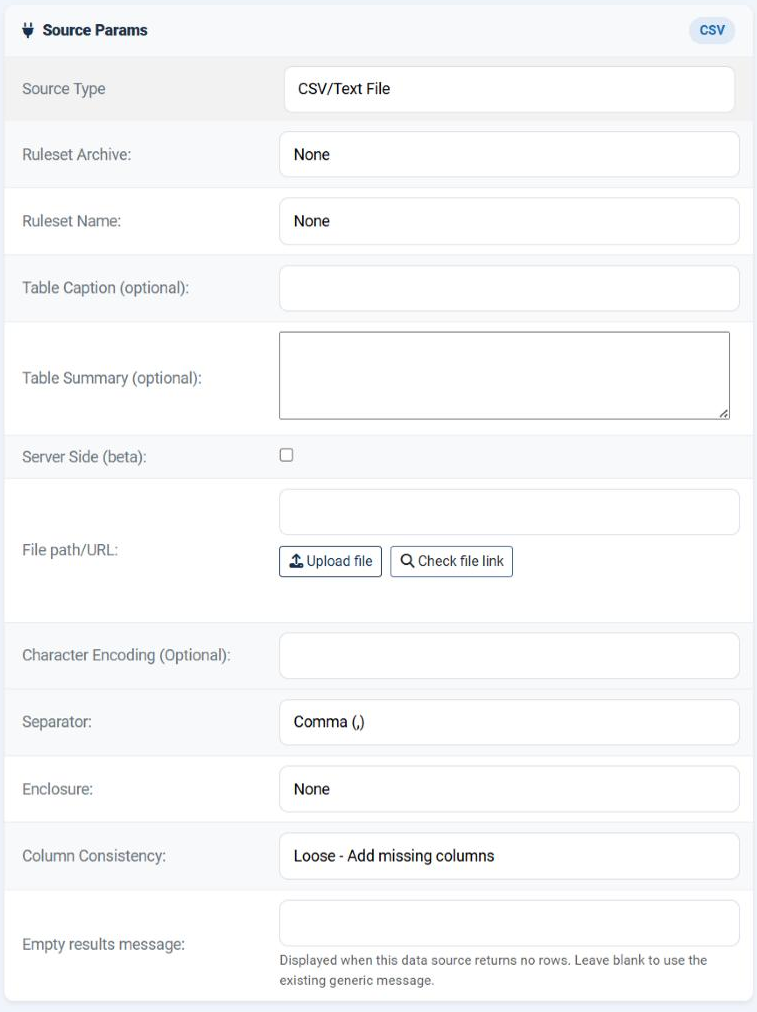

The Source Params card of a CSV/Text File data source in the Joomla administrator, showing Source Type, Ruleset Archive, Ruleset Name, Table Caption, Table Summary, Server Side, File path/URL with its Upload file and Check file link buttons, Character Encoding, Separator, Enclosure, Column Consistency and Empty results message.

The first six rows are the same for every data source: the ruleset to apply, the optional accessibility caption and summary, and the server-side switch. The rows below them are what makes this a CSV source.

File path/URL

Where the file is. One field accepts four different kinds of answer.

What you type	What it means	When to use it
`prices.csv`	Just a file name: the file in Tabulizer's own data folder, uploaded through Manage Data Files.	Nearly always. It is the only form that survives being exported to another site, because it contains no path.
`tmp/prices.csv`	A path relative to the site root.	The file is produced by something else on the same site and lands somewhere fixed.
`/full/server/path/prices.csv`	An absolute path on the server.	The file is written outside the site - by a nightly job, say. It will have to be corrected by hand on any other site.
`https://example.com/data/prices.csv`	A URL, internal or external.	Somebody else publishes the file and you do not want a copy. Turn the cache on.

Two buttons sit beneath the field. Upload file takes you to the data file manager so you can put the file on the site without leaving the task. Check file link tests the value you have typed and tells you whether it can be read - use it before saving, every time.

A remote file needs the server to be allowed out. Tabulizer fetches it with cURL when the cURL extension is present, and falls back to PHP's own file reading when allow_url_fopen is enabled. If cURL is missing and allow_url_fopen is off - a common hardening choice - the read fails and no amount of correcting the URL will help. The Status page tells you whether cURL is present; your host controls both.

A remote read also gives up after 30 seconds, and 10 seconds if the other server never answers at all. A source that is slow but working is a reason to raise the cache time, not to wait.

Character Encoding (Optional)

Leave it empty. Tabulizer works in UTF-8, which is what nearly every file is, and an empty field means "it is already UTF-8".

Fill it in only when the file is something else and you can see it: accented characters coming through as question marks, diamonds or little pairs of symbols. Then type the encoding the file is actually in - ISO-8859-1 and ISO-8859-7 are the usual answers for older Western European and Greek exports, windows-1252 for files that came out of an old Windows application - and the contents are converted on the way in.

If you can choose how the file is produced, choose UTF-8 at the source and leave this field alone. Converting is a repair, not a setting.

Separator, Enclosure and Column Consistency

These three decide how each line is cut into cells.

Field	Options	What it does
Separator	Comma (,); Semicolon (;); Asterisk (*); Caret (^); Space; Tab	The character between two values. It must be the one your file actually uses - look at the file in a text editor rather than guessing from the extension, because a file called `.csv` is very often semicolon-separated.
Enclosure	None; Double Quotes ("); Single Quotes (')	The quote character that wraps a value which itself contains the separator, so `"Smith, John"` stays one cell. Set it to match the file. With None, every separator splits, quotes and all.
Column Consistency	Strict - Every row must have the same number of columns; Loose - Add missing columns	What to do when the rows are not all the same width. Strict warns you, which is how you find the line with the missing value. Loose pads the short rows with empty cells so the table still renders.

Work with Strict while you are preparing the file - it is a free check on your data - and switch to Loose only if short rows are normal and expected in a file you do not control.

How the file is read

Worth knowing, because it explains most of the surprises.

Step	What happens
1. Fetch	The file is read from disk or fetched over the network.
2. Convert	If you named an encoding, the contents are converted to UTF-8.
3. Split into rows	The text is cut at every line break. Blank lines are skipped - a file with empty lines between sections does not produce empty rows.
4. Split into cells	Each line is cut at the separator, respecting the enclosure.
5. Apply the ruleset	The rows go through the chosen ruleset, which decides the header row, the styling and the interactive features.

One line is one row. A value containing a line break - a long description typed over several lines in a spreadsheet - becomes two rows, not one tall cell. If your data has such values, remove the line breaks before exporting, or use the Excel source instead.

There is no "first row is the header" setting here, and none is needed: the ruleset decides how many rows are header rows. If your file carries its column names on line 1, pick a ruleset whose header size is 1.

Keeping it up to date

Upload the new file

Manage Data Files › Import Data File, same file name, Overwrite ticked.

Clear the cache

Only if this data source caches. Select it in the list and press Clear Cache.

Check

Press Preview. Nothing else needs touching - not the data source, not the pages.

Common questions

Every row lands in a single cell.

The separator is wrong. Open the file in a text editor and look at the character between two values - semicolons are extremely common in files exported on machines where the decimal mark is a comma.

Some rows have an extra column.

Those values contain the separator and are not quoted, or the Enclosure does not match the quote character the file uses.

Accented characters are mangled.

The file is not UTF-8. Name its real encoding in Character Encoding, or re-export it as UTF-8.

The remote file will not load.

Use Check file link first. If that fails while the URL works in your own browser, the server is not allowed to make outgoing requests: look at the cURL library on the Status page and ask your host about allow_url_fopen.

I get a warning about inconsistent columns.

Column Consistency is Strict and a line is short. That is the setting doing its job - find the line. Switch to Loose only once you know the short rows are intentional.

The first row should be a header but is not.

Header rows are a ruleset decision, not a data source one. Choose a ruleset whose header size is 1.

Can I point two data sources at one file?

Yes, and it is a good habit: the same file with two different rulesets gives you two presentations of the same data, each with its own tag.

Build a CSV data source

In your Joomla administrator: Components › Tabulizer › Data Sources › New Data Source.
